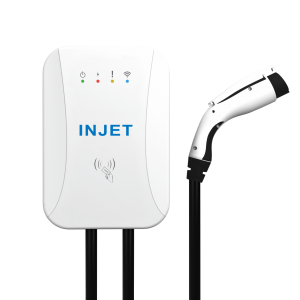

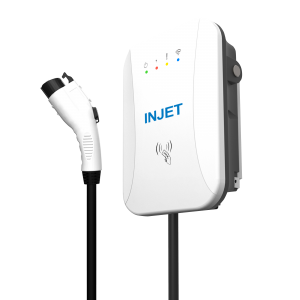

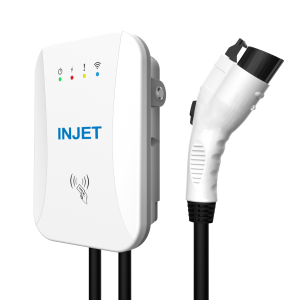

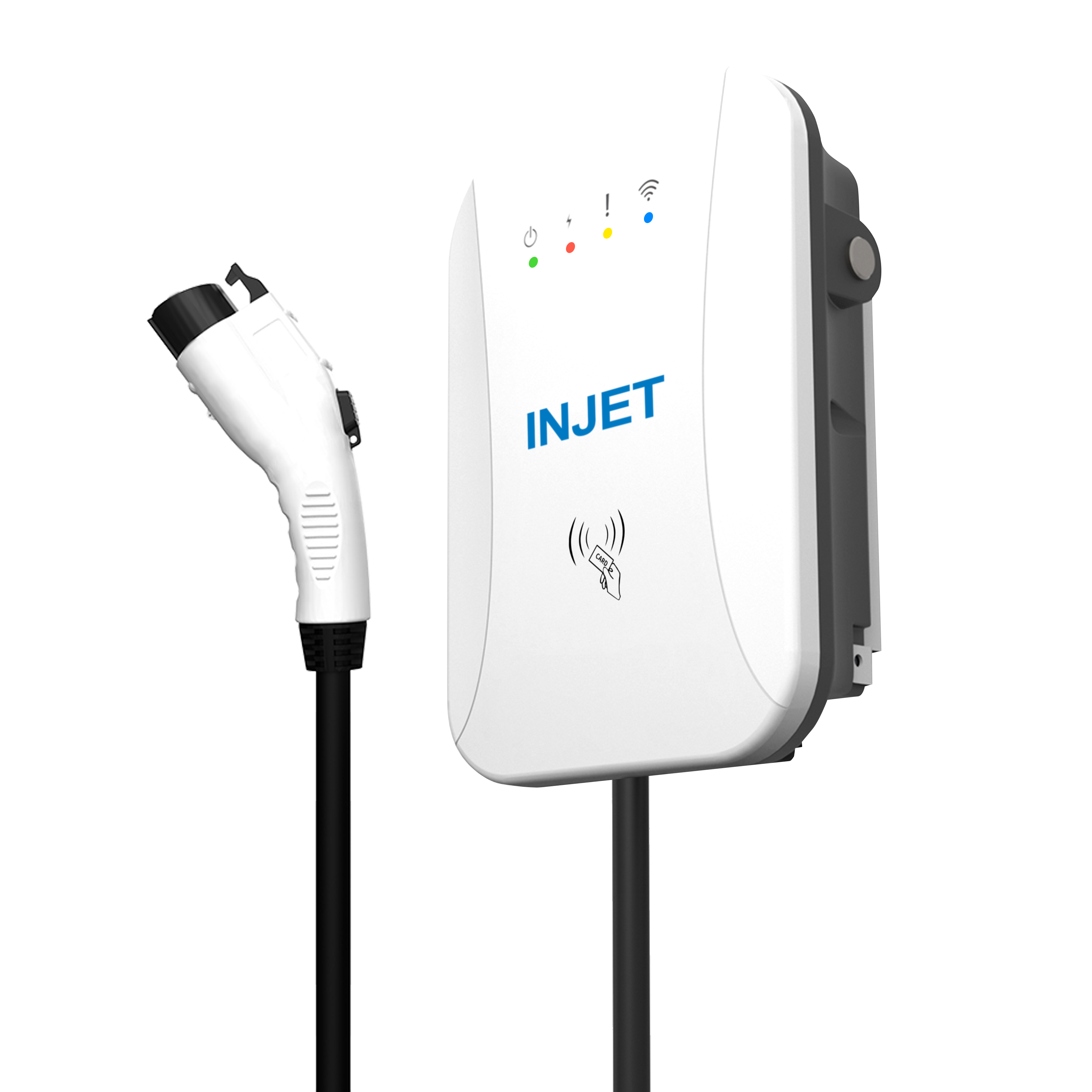

Injet Nexus US Series Level 2 Charger AC charger

The level 2 charger is suitable for residential/ commercial use. Max output 7kW/10kW optional, can meet fast charging. Compact design help customer saves more space. Installation can be wall-mounted or floor-mounted in the garden, packing area, or condos.

AC Power Input Rating: Level 2 AC 208/ 240V, 50/ 60Hz

AC Power Input Plug: NEMA 14-50P with 300mm length cable

AC Power Output Rating Current: 32A, 40A

Connect Type: SAE J1772 Type 1 plug & 5m charging cable

Charging Control: Plug and play, RFID card, or APP

Indicators: 4 LED indicators – power/ charging/ fault/ network

External Communication: Ethernet (RJ-45), Wi-Fi

OCPP Protocol (Optional): OCPP 1.6J

Storage Temperature: -40 to 75℃ (-40 to 167℉)

Operation Temperature: -30 to 55℃ (-22 to 131℉)

Operation Humidity: Up to 95% non-condensing

Altitude: ≤2000m

Electrical Enclosure: Type 4

CCID & Full Protection: Yes

Dimensions: 310x220x95mm

Weight: < 7kg

OEM Customize Options: Yes

Certificate: UL, FCC, Energy Star

Technical Parameters

  • Charging Capacity

    3.5kW, 7kW, 10kW

  • Power Input Rating

    Single phase, 220VAC ± 15%, 16A , 32A and 40A

  • Output Plug

    SAE J1772 (Type1)

  • Configurations

    LAN (RJ-45) or Wi-Fi connection

  • Operating Temperature

    - 30 to 55 ℃ (-22 to 131 ℉) ambient

  • Electrical Enclosure

    Type 4

  • CCID 20


  • Installation

    Wall mounted or Pole mounted

  • Weight & Dimension

    310*220* 95mm (7kg)

  • Certification

    UL, FCC, and Energy Star


  • Easy to install

    Only need to fix with bolts and nuts, and connect the electric wiring according to the user manual

  • Simple to charge

    Plug & Charge, or swapping card to charge, or controlled by App, it depends on your choice.

  • Compatible with all EVs

    It's built to be compatible with all the EVs with the type 1 plug connectors.

How to Install the Wallbox Charging Stations?


  • Parking Lot

    Attract drivers who park longer and are willing to pay to charge. Provide convenient charge to EV drivers to max your ROI easily.

  • Retail & Hospitality

    Generate new revenue and attract new guests by making your location an EV rest stop. Boost your brand and show off your sustainable side.

  • Workplace

    Provide the charging stations can encourage the employees to drive electric. Set station access for only employees or offer it to the public.
