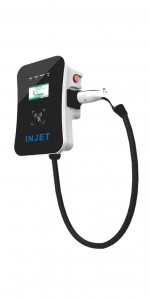

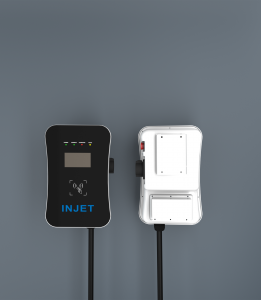

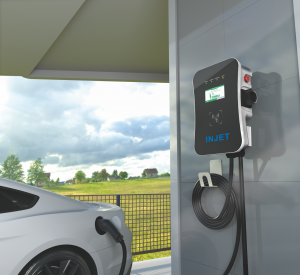

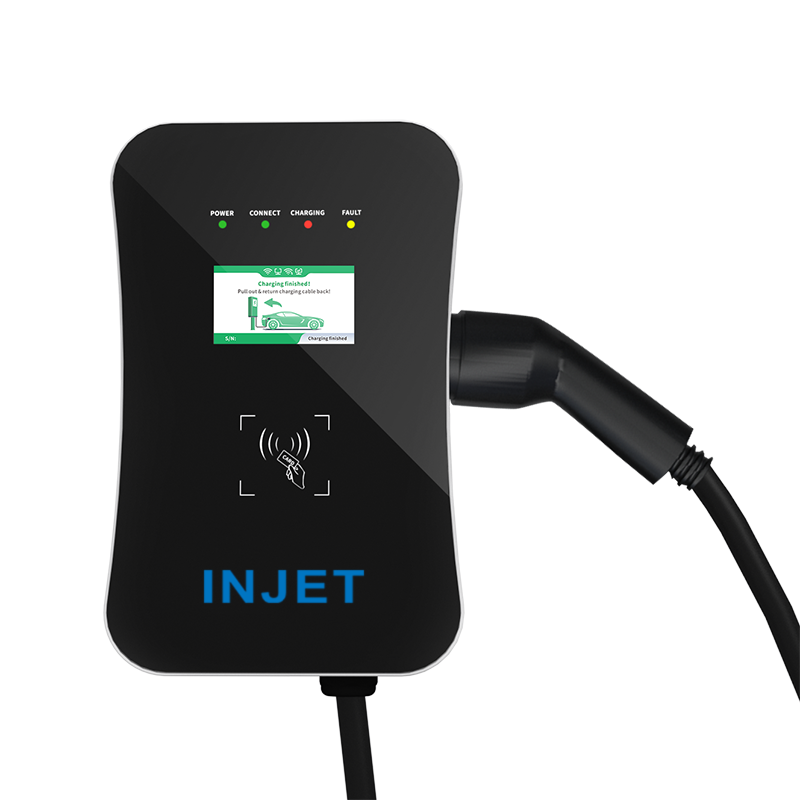

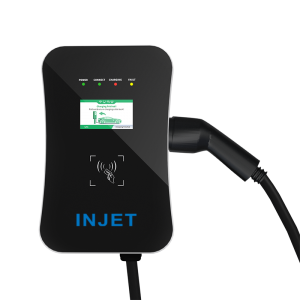

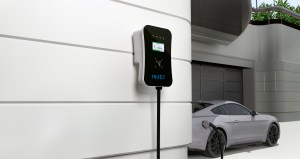

This Wall-box EV charger is both suitable for residential and commercial use, the max output can reach 22kw to allow fast charge. its compact design can save more place. This AC EV Charging Stations Swift EU Series also can be mounted on the the floor-mounted attachment, applicable for outdoor installation like parking lot of office building, hospital, supermarket, Hotel and etc. for commercial EV charging.
Input Voltage: 230V/400V
Max. Rated Current: 16A/32A
Output Power: 3.6kw/7.2kw/11kw/22kw
Wire Cross-section: 2.5 mm² -6 mm²
Operating Temp.: -35 ℃ to + 50 ℃
Storage Temp.: -40 ℃ to + 60 ℃
Cable Length: 5m/7.5m
Connector: IEC 62196 Type 2
Communication: WIFI +Ethernet +OCPP1.6 J
Control: Plug& Play, RFID cards, App
IP Protection: IP54
Dimensions: 410*260*165 mm
Weight: 9kg /11 kg
Certificates: CE, RoHS, REACH
7kW, 11kW, 22kW,43kW
Single phase, 220VAC ± 15%， 3 phases 380VAC ± 15%, 16A and 32A
IEC 62196-2 (Type 2) or SAE J1772 (Type1)
LAN (RJ-45) or Wi-Fi connection, Optional MID meter add-on
- 30 to 55 ℃ （-22 to 131 ℉） ambient
Type A or Type B

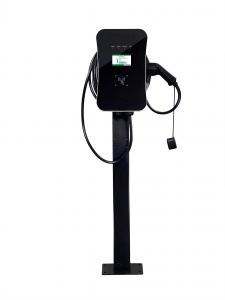

Wall mounted or Pole mounted
410*260* 165mm (12kg)
Only need to fix with bolts and nuts, and connect the electric wiring according to the manual book.
Plug & Charge, or Swapping card to charge, or controlled by App, it depends on your choice.
It's built to be compatible with all the EVs with the type 2 plug connectors. Type 1 is also available with this model
Plug & Play: If you own a private parking area, no other person can get access to the charger, then you can choose the mode "Plug & Play" mode.
RFID Cards: If you are installing the EV charger outside, and someone can get access to the charger, then you can use the RFID cards to start and stop the charging.
Remote Control by App: Our Swift EV charger supports the remote control by App, through OCPP 1.6J. If you have your own app, we can provide the technical service to connect your App. Now we also finished the development of our own App for home users.
Our App is finished with development, now it's under testing. All the new M3W wall box EV chargers can use the app to have a smart charging experience.
Current Adjustment: You can easily adjust the charging current to fit the balance load.
Flexible Booking Function: The App supports charging booking to enable you to automatically start at any time you want. Choose the period which is cost-effective.
Charging Report: All your charging records will be collected and tabulated to be a report.
WIFI Configuration: You can easily configure the wifi of the EV charger with the APP.
EV charging load management balances energy demand throughout the day, with a focus on reducing energy usage during peak demands.
Full Charging: When there is no other home appliance used in the house, the power is enough for the fully charging;
Automatically Adjusting: when there are other home appliances working, the load on the main circuit is not enough for the full charging, so the Charge mate will adjust the EV charger to reduce the charging capacity.
How it works ?: We have a current transformer to detect the balance current of the main circuit and automatically adjust the charging power of the EV charging stations, which will make the charging more scientific and efficient.
PLC Wireless Communication: EV charging load management is delivered via a software-based, hardware-agnostic solution where the system is in constant communication with the vehicle charge points and the station’s power infrastructure.
Attract drivers who park longer and are willing to pay to charge. Provide convenient charge to EV drivers to max your ROI easily.
Generate new revenue and attract new guests by making your location an EV rest stop. Boost your brand and show off your sustainable side.
Provide the charging stations can encourage the employees to drive electric. Set station access for only employees or offer it to the public.
