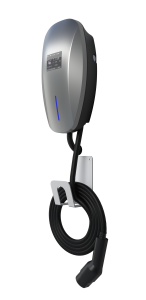

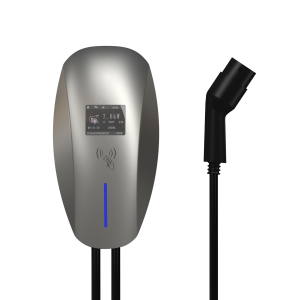

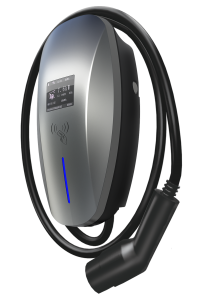

AC EV Charging Stations Injet Sonic

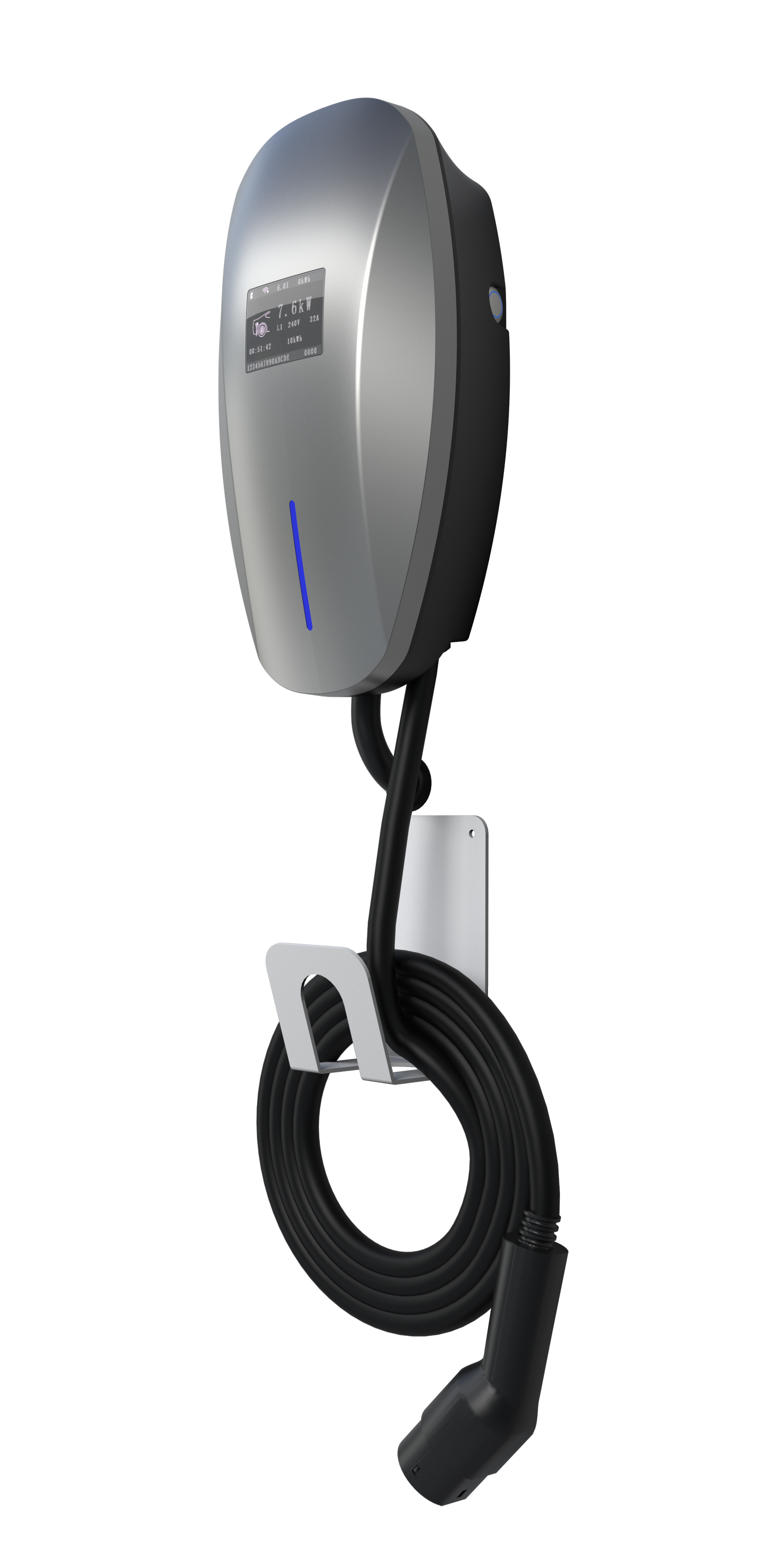

Injet Sonic EV charger is the new products design 2022 , this is Iron Man mask design is coming from the revengers. But it’s also like the welding mask. This EV charger is complies with IEC 61851 ccs type 2 standard. Certifications SUD TUV CE(LVD,EMC,ROHS)CE-RED.  It has WIFI for connecting our App WE- E CHARGE. So you can easily monitor the charging data no matter where you are.

Input Voltage: 230V/400V

Max. Rated Current: 16A/32A

Output Power: 7kw/11kw/22kw

Connector: Type 2

Dimensions: 400*210*145 mm

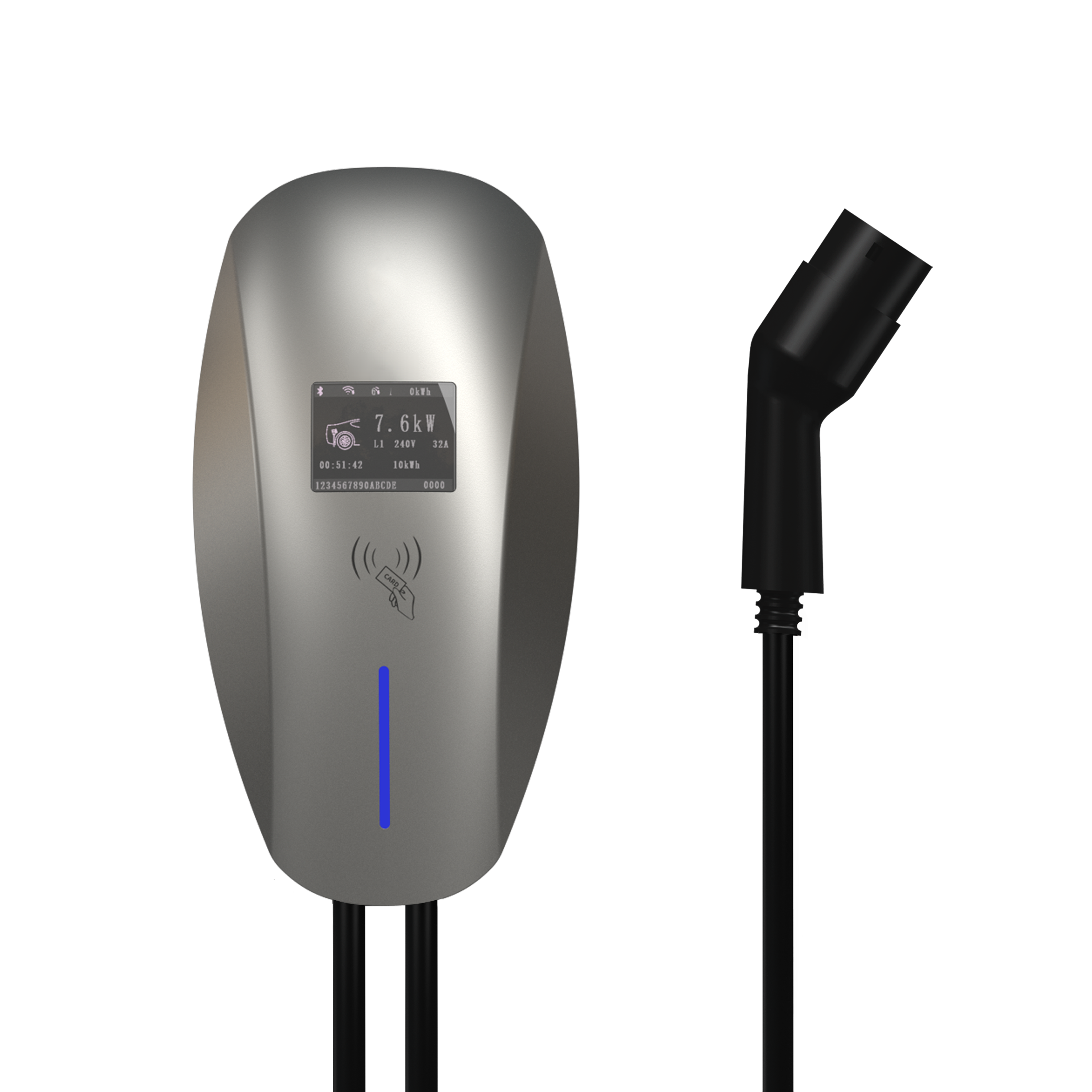

Display: 3.5 inch display

Indicator: Yes

Operating Temp.: -35 ℃ to + 50 ℃

Storage Temp.: -40 ℃ to + 75 ℃

Work Humidity: ≤95%RH, No water droplet condensation

Work Altitude: <2000m

Communication: WIFI +Bluetooth +OCPP1.6 J+RS485

Control: Plug& Play, RFID cards, App

Dynamic Load Blancing: optional

Solar Charging: optional

Ingress Protection: IP65, IK10

Residual current protection: Type A 30mA+ 6mA DC

Over load protection: ✔

Over/Under voltage protection: ✔

Short circuit protection: ✔

Earth Leakage Protection: ✔

Ground Protection: ✔

Surge protection: ✔

Over temperature: ✔

Certification: SUD TUV CE(LVD. EMC. RoHS), CE-RED

Technical Parameters

  • Maximum Power

    7kw/32A 230VAC ; 11kw/16A 400VAC;22kW/32A 400VAC

  • Connector

    Type 2

  • Dimension (H*W*D)


  • Display

    3.5 inch display

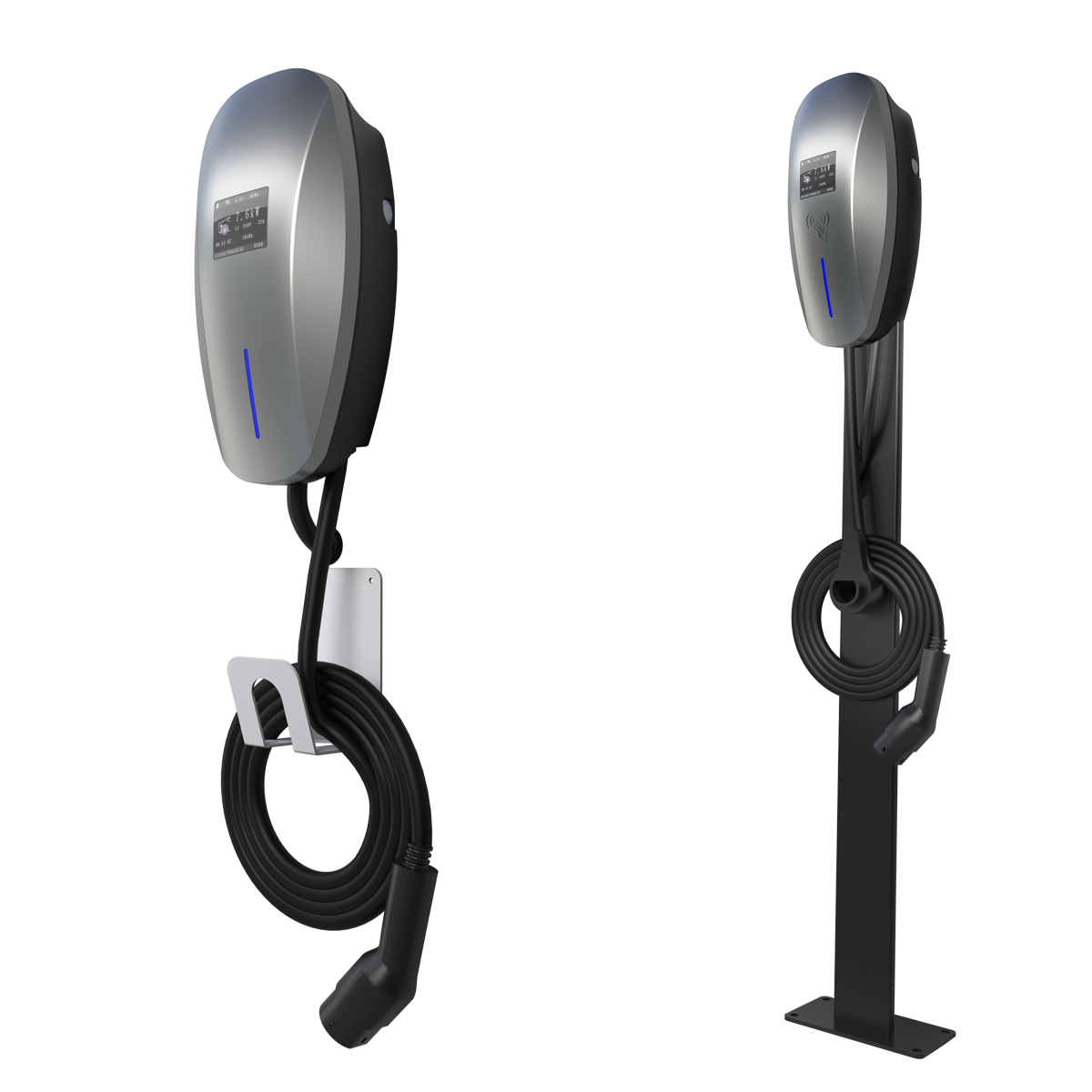

  • Installation

    Wall / Pole mounted

  • Certification


  • Ingress Protection


  • Dynamic Load Blancing

    Solar Charging


  • Smart Charging

    Smart App to schedule the charging time.

    Multi-platform adaptability with OCPPRs485 interface for Dynamic Load Balancing/ Solar Charging.

  • Multiple Options

    WIFI /Bluetooth /plug & play /

    3.5-inch highlight display for option

  • Reliable And Safe

    Type A 30mA+ 6mA DC leakage protection

    PEN Fault Protection

    TUV SUD certified

  • 100% Compatible

    Fit for all EVs comply with Type2 standard

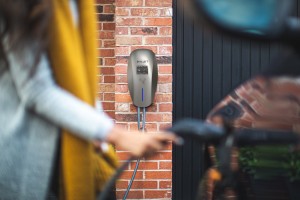

  • Household

    Suitable for home use, APP control is more convenient and smarter. Support family members to share.

  • Workplace

    Provide the charging stations can encourage the employees to drive electric. Set station access for only employees or offer it to the public.

  • Parking Lot

    Attract drivers who park longer and are willing to pay to charge. Provide convenient charge to EV drivers to max your ROI easily.

  • Retail & Hospitality

    Generate new revenue and attract new guests by making your location an EV rest stop. Boost your brand and show off your sustainable side.
