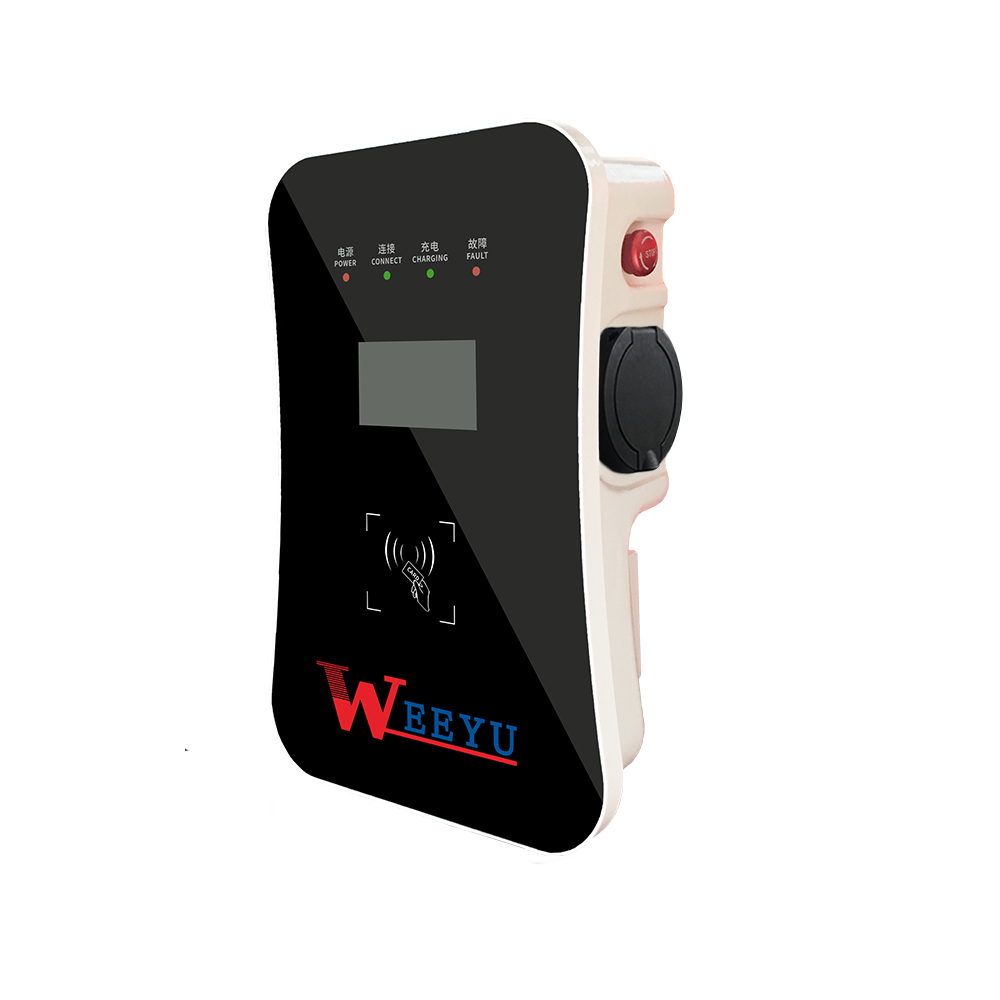

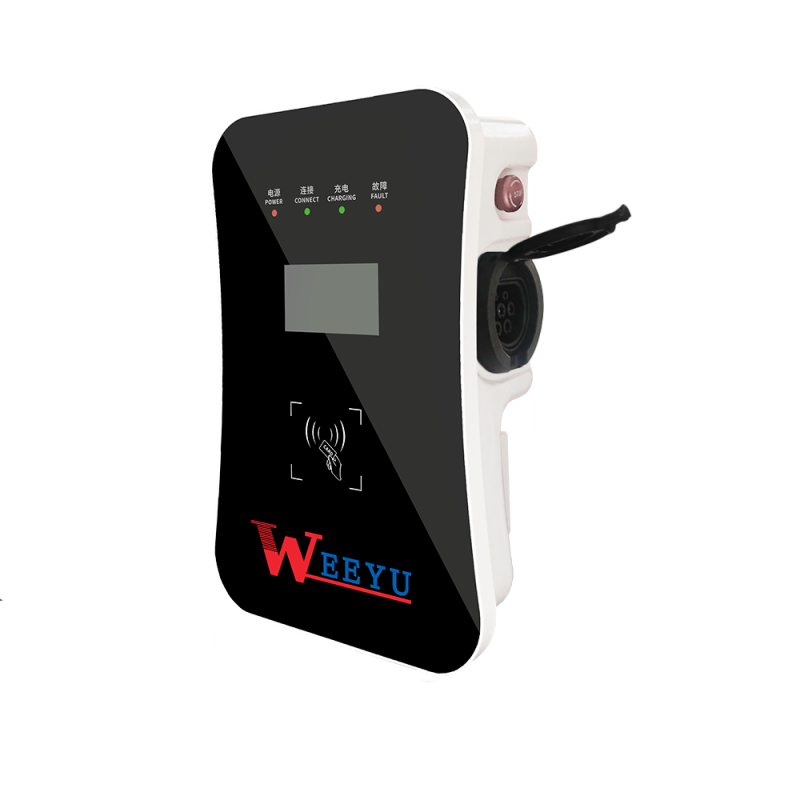

Untethered Wallbox Charging Stations
I’m built to support all the electrical vehicles, no matter the plug standard of your electrical vehicles is type 1 or type 2, both you can charge with your own type 2 to type 2 or type 2 to type 1 connectors. 1 phases to 3 phases are all available. 3.5 kw, 7kw, 11kw and 22 kw single outlet.
Smart
OCPP 1.6 or 2.0.1 is enable it to support software and remotely control the charging sessions.
Safe
Shockproof, over-temp protection, short circuit protection, over and under voltage protection, over load protection, ground protection, surge protection.
Durable
It’s built for long-time service, water proof and designed to work at -30 to 55 °C ambient temperature, never fear the freezing or the scorching heat.
OEM & ODM
Costumer can customized some features including the color, logo, functions , casing etc.
Technical Parameters
-
Charging Capacity
3.5kw, 7kW, 11kW, 22kW
-
Power Input Rating
Single phase, 220VAC ± 15%， 3 phases 380VAC ± 15%, 16A and 32A
-
Output Plug
IEC 62196-2 (Type 2), Case B connector
-
Configurations
LAN (RJ-45) or Wi-Fi connection, Optional MID meter add-on
-
Operating Temperature
- 30 to 55 ℃ （-22 to 131 ℉） ambient
-
Protection Ratings
IP 65
-
RCD
Type B
-
Installation
Wall mounted or Pole mounted
-
Weight & Dimension
410*260* 165mm (10kg)
Features
-
Easy to install
Only need to fix with bolts and nuts, and connect the electric wiring according to the manual book.
-
Simple to charge
Plug & Charge, or swapping card to charge, or controlled by App, it depends on your choice.
-
Compatible with all EVs
It's built to be compatible with all the EVs . User can use their own type 2 to type 1 connector or type 2 to type 2 connectors.
APPLICABLE DESTINATIONS
-
Parking Lot
Attract drivers who park longer and are willing to pay to charge. Provide convenient charge to EV drivers to max your ROI easily.
-
Retail &Hospitality
Generate new revenue and attract new guests by making your location an EV rest stop. Boost your brand and show off your sustainable side.
-
Workplace
Provide the charging stations can encourage the employees to drive electric. Set station access for only employees or offer it to the public.
