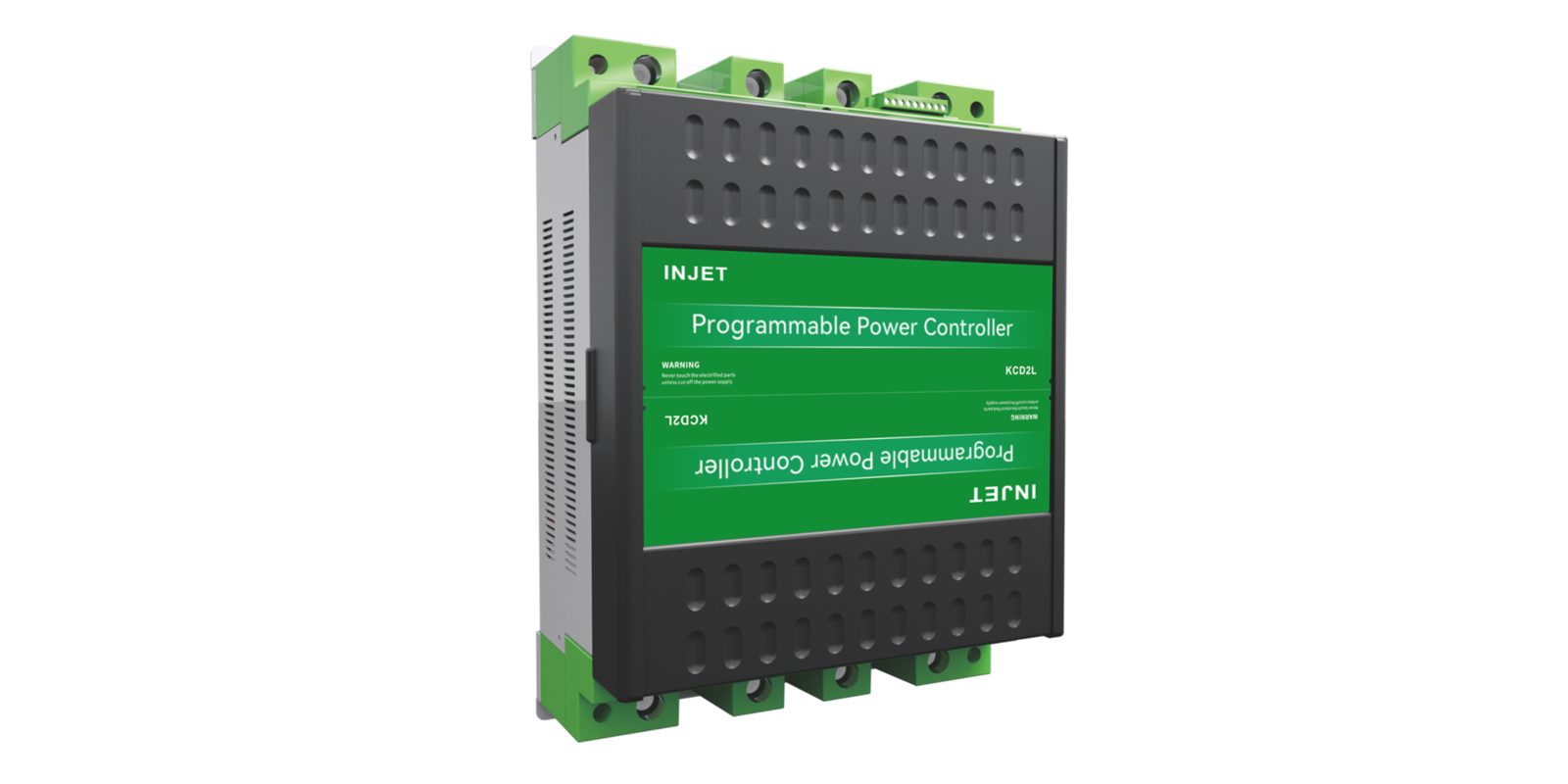

Programmable Power Controller (PPC)
Our Programmable Power Controller(PPC)is a highly integrated power module that contains multiple functional components. You can quickly build a DC charging station by assembling “Case + Charging Module + PPC + Connector”. This technology revolutionized the way of manufacturing charging stations, and it significantly simplifies the assembly of charging station. By choosing our PPC, production efficiency is not the only thing you are improving.
Charging System: IEC 61851-1 ed 3IEC 61851-21-2 ed1,IEC 61851-23 ed 1,IEC 61851-24 ed 1,IEC 62196-2,IEC 62196-3,1EC 6100
Communication Standard: ISO 15118，DIN 70121
Applicable power range: 60-200kW
Input work voltage range: 230 VAC +/- 10% (50 Hz or 60 Hz)
DC input/output voltage range: 12 ~ 1000V
DC input/output maximum current: 250A
Number of outlet: 2
Communication to the backend: OCPP 1.6JSON
Overvoltage category: Type II
Standby power: 5W
Energy metering: Optional, MID metering for DC outlets
Communication Protocol: OCPP 1.6J
Equipment Dimension(W x D x H): 300mmx170mmx430mm
Equipment Weight: ≤12kg
Storage Temperature: -40℃ to 75℃
Operating Temperature: -20C to 55℃, derating output in 55℃
Operating Humidity: Up to 95% non-condensing
Altitude: ≤2000m
Cooling Method: Natural cooling
Protection Ratings: IP00
Over Voltage Protection: Yes
Over Load Protection: Yes
Over-Temp Protection: Yes
Under Voltage Protection: Yes
Short Circuit Protection: Yes
Ground Protection: Yes
Surge Protection: Yes
