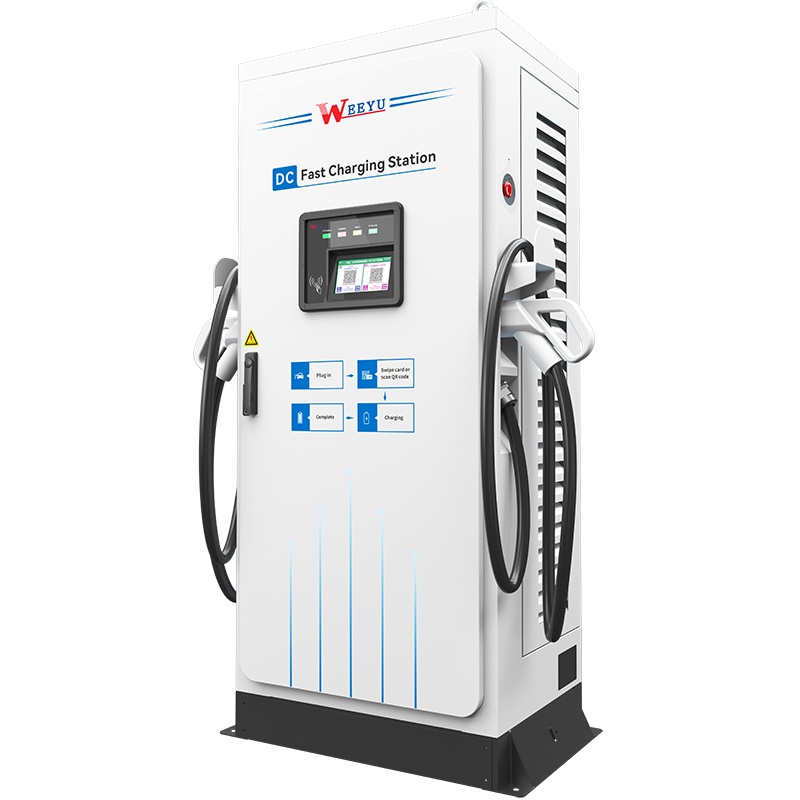

M4F DC fast Charging Station

Weeyu DC fast charging station can be equipped with 1 or 2 connectors, output power from 80kw to 200 kw. It can quickly connect your EV, and charge to 80% or more in about 30 minutes.
Our DC fast chargers are compatible with all types of Electric Vehicles currently on the market with SAE J1772 plug standard.

· Integrated Smart HMI: 7-inch high-contract LCD touchscreen
· Safe and reliable, with multiple fault protection
· OCPP 1.6J Compliant,4G, Ethernet available

· APP, RFID charging control approval, with emergency stop function
· IP54, dustproof, waterproof and anti-corrosion
· Charging module separated from control system, stable and safe performance

· Multiple module output in parallel, flexible configuration and easy maintenance
· Constant power module and smart power allocation, high charging effciency
· Charging gun disconnected detection ensures safe charging

· All the control system can be remotely or locally upgraded
· Logo, function customize
· With the use of “Power Integrated Charger Controller” German PET patented technology, only 200 pcs of terminal blocks + 100 pcs wires internal

Charging Station

  • Charging Capacity

    120 kw

  • AC Power Input Rating

    400 VAC ±10%, 50/60 Hz (EU Version); 480 VAC ±10%, 50/60 Hz (North American Version)

  • DC Voltage Output

    150 ~ 1000VDC

  • Output Plug

    CCS1+CCS1 / CCS2+CCS2 / CCS1+CCS2

  • Network Interface

    3G / 4G / Ethernet (RJ45)

  • Operating Temperature

    -20 to 55℃ ambient

  • Peak Efficiency

    ≥96% (@750V, 50% ~ 100% full load, rated input Voltage)

  • PF (Power Factor)

    ≥98% (@50% ~ 100% full load output power)

  • Protection Ratings


  • Weight & Dimensions

    980mm×600mm×1820mm, ≤ 300kg


  • Safe to charge

    Shockproof, over-temp protection, short circuit protection, over and under voltage protection, over load protection, ground protection, surge protection

  • Smart to charge

    Simple operation system, easy to understand. It built to support software to remotely control the charging.

  • Compatible with EU & North America Version

    CCS1+CCS1 / CCS2+CCS2 / CCS1+CCS2


  • Parking Lot

    Attract drivers who park longer and are willing to pay to charge. Provide convenient charge to EV drivers to max your ROI easily.

  • Retail &Hospitality

    Generate new revenue and attract new guests by making your location an EV rest stop. Boost your brand and show off your sustainable side.

  • Highway charging station

    Fast charging solves driving range anxiety , and enable the EV drivers to drive long and far.
