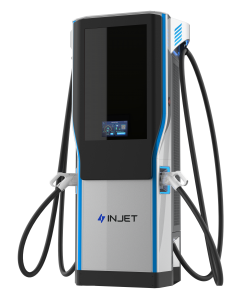

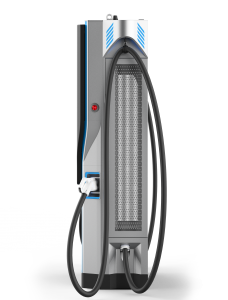

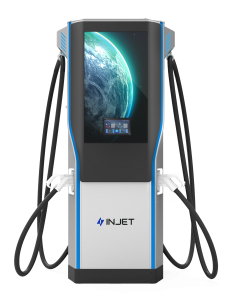

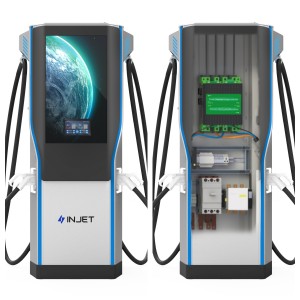

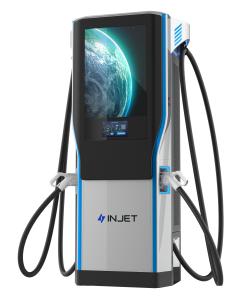

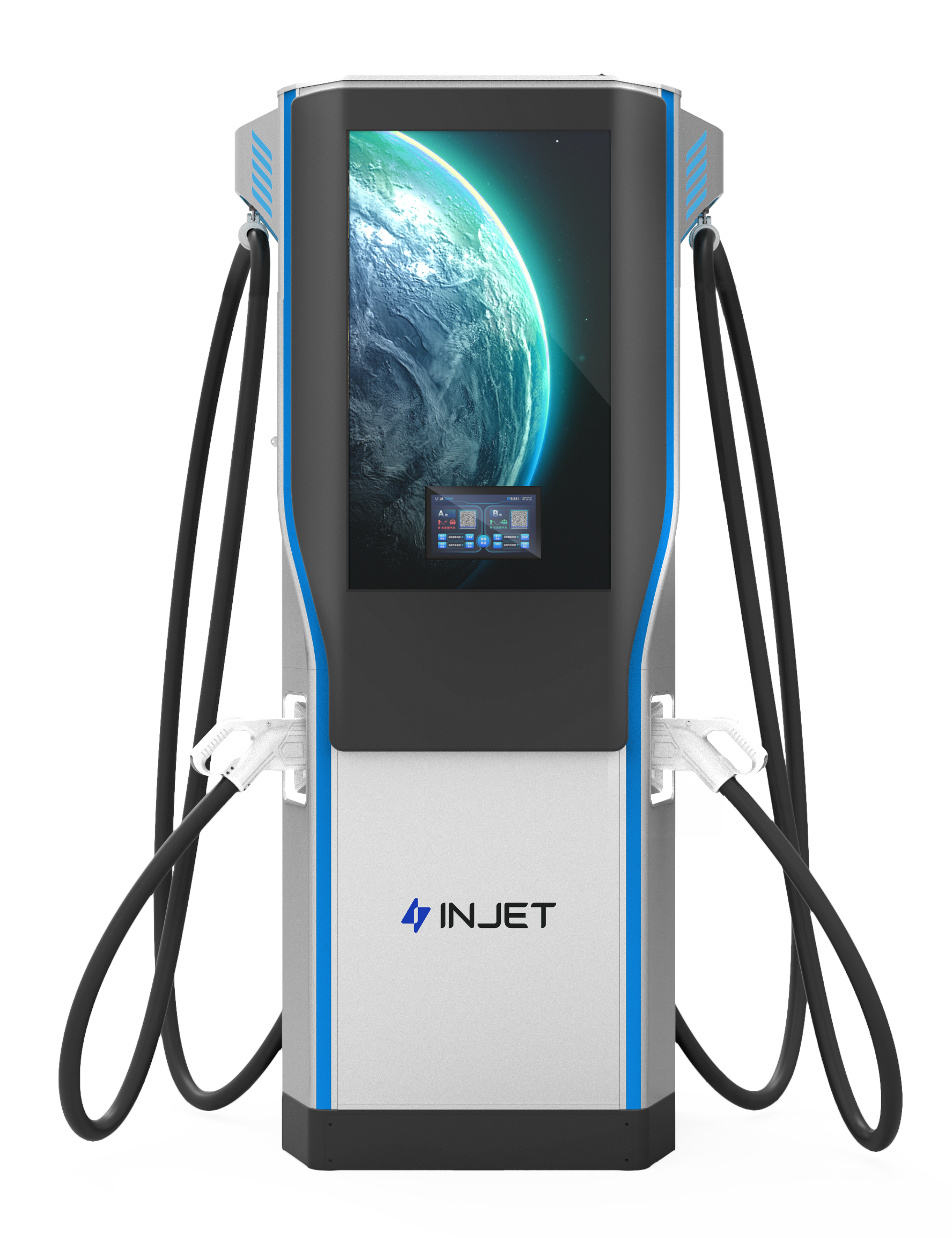

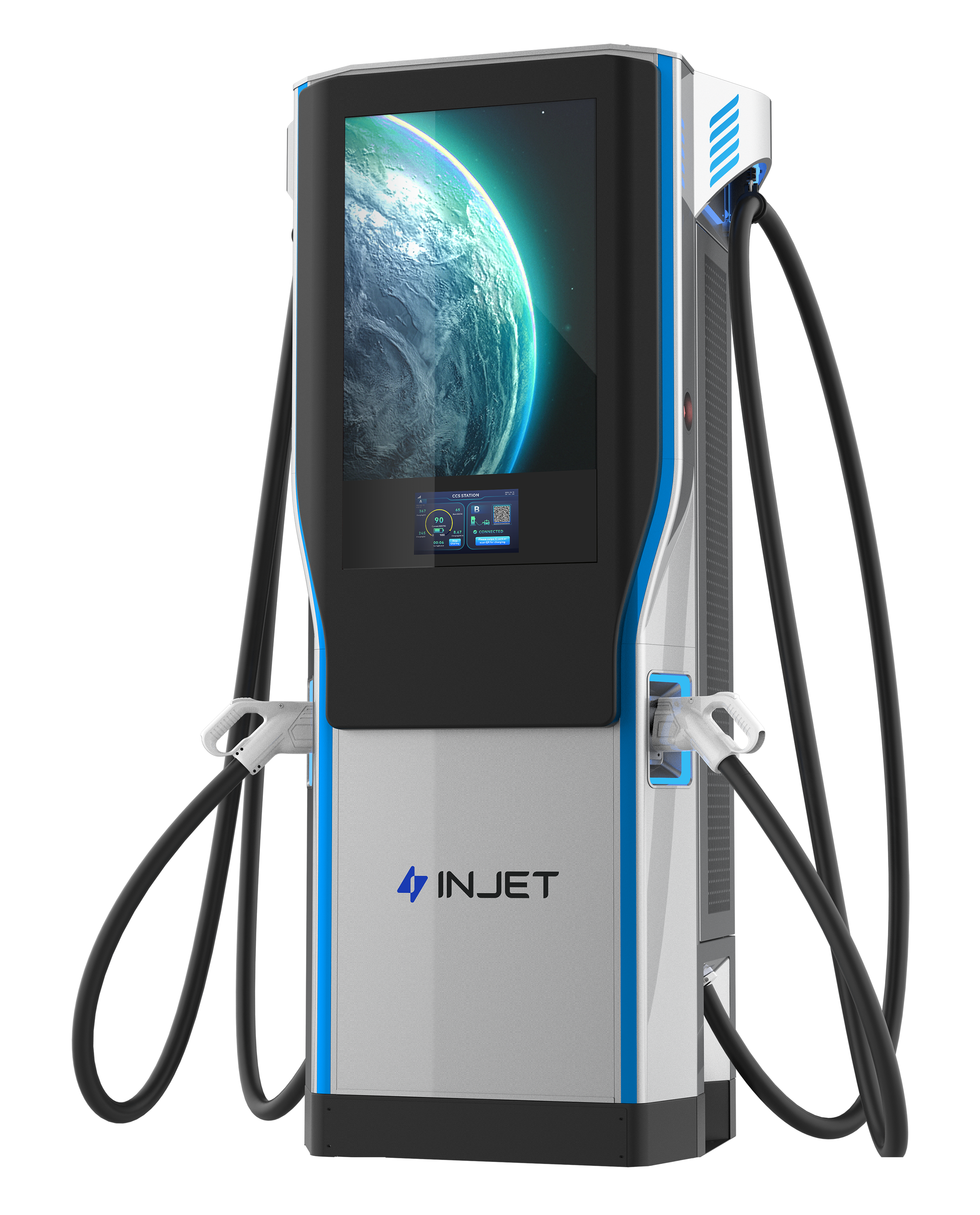

Injet Ampax Commercial DC Fast Charging Station
Injet Ampax can be equipped with 1 or 2 charging guns, with an output power from 60kW to 240kW, which can charge most EVs with 80% of the mileage within 30 minutes. Injet Ampax is compatible with all types of Electric Vehicles currently on the market and complies with SAE J1772/CCS Type 1 charging plug. Relying on the advantages of technology R & D, Injet Ampax uses “Integrated Electric Vehicle Charging Power Controller”. Different from the traditional assembled charging station, the charging station production and assembly process is simple, reducing the equipment failure rate, easy to operate and maintain and lower cost.
Mechanical
Protection Ratings: Type 3R/IP54
Dimension (W*D*H)mm: 1040*580*2200
Net Weight: ≤500kg
Enclosure Material: Metal
Color: RAL 7032 (Grey)
User interface & control
Charging Control: APP, RFID
Human-Machine Interface:
10-inch high-contrast touch screen
Indicators:
High brightness multi-color LED lights
Network Interface:
Ethernet(RJ-45)/4G(Optional)
Communication Protocol: OCPP 1.6J
Environmental
Storage Temperature: -40℃ to 75℃
Operating Temperature: -30℃ to 50℃, derating output in 55℃
Operating Humidity: Up to 95% non-condensing
Altitude: ≤2000m
Cooling Method: Forced air cooling
Protection
Over Load Protection: ✔
Over-temp Protection: ✔
Short Circuit Protection: ✔
Ground Protection: ✔
Surge Protection: ✔
Emergency Stop: ✔
Over/Under Voltage Protection: ✔
Power Specification
-
Input Voltage Rating
480VAC±10%, 50/60Hz
-
Power Wiring
3P+N+PE
-
DC Voltage Output
150~1000VDC
-
DC Power Output Rating
60~240kW
-
Constant Power Range
300~1000VDC
-
Power Factor
＞0.98（Load≥50%）
-
The Maximum Output Current
250A
-
Charging Connector
CCS 1+CCS1/CCS2+CCS2/CCS1+CCS2
-
Charging Cable Length
5 meters; Customizable with a maximum length of 7.5 meters
-
THD-I
≤5%（Rating Voltage Input,Load≥50%）
-
Peak Efficiency
≥96%
-
Voltage Stabilized Accuracy
≤±0.5%
-
Current Stabilized Accuracy
≤±1%
-
Output Voltage Error
±0.5%
-
Ripple Factor
≤±0.5%(RMS)
-
Output Current Error
≤±1%（when output current≥30A); ≤±0.3%（when output current≤30A);
-
Electric Energy Measurement Method
Measuring DC output electric energy
-
Connector Mechanical Operating Life
≤10000 times, without load
Features
-
Powerful Fast Charging
Output power from 60kW to 240kW, which can charge most EVs with 80% of the mileage within 30 minutes
-
Safe And Reliable
Multiple protection measures to guarantee the safe and accurate operation of multi-vehicle at the same time. Type 3R/IP54, dustproof, waterproof and anti-corrosion
-
R & D

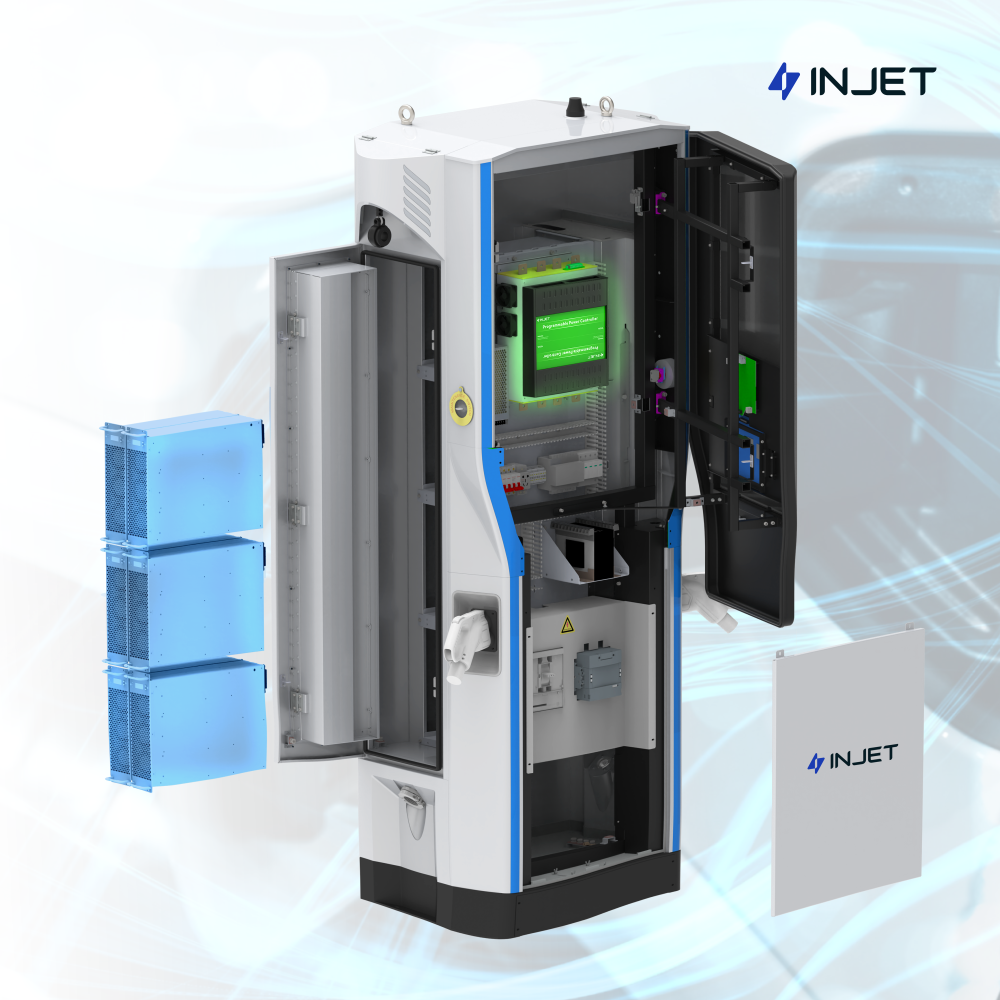

Relying on the advantages of technology R & D, Injet Ampax uses "Integrated Electric Vehicle Charging Power Controller". Reducing the equipment failure rate, easy to operate and maintain and lower cost.
-
100% Compatible
Injet Ampax is compatible with all types of Electric Vehicles currently on the market and complies with SAE J1772/CCS Type 1 charging plug.

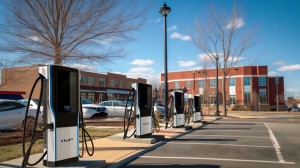

APPLICABLE DESTINATIONS
-
Parking Lot
Attract drivers who park longer and are willing to pay to charge. Provide convenient charge to EV drivers to max your ROI easily.
-
Retail &Hospitality
Generate new revenue and attract new guests by making your location an EV rest stop. Boost your brand and show off your sustainable side.
-
Highway charging station
Fast charging solves driving range anxiety , and enable the EV drivers to drive long and far.
